Chain Link Slope Protection Net

Home Products Slope Protection SystemChain Link Slope Protection Net

Chain Link Slope Protection Net for Surface Covering, Greening, and Light Rock Control

Chain link slope protection net provides an economical flexible cover for shallow slope stabilization and vegetation support. The diamond mesh follows uneven ground and helps hold loose surface material, soil, or planting substrate in place.

It is used on road slopes, embankments, cut slopes, and greening projects with lower energy requirements. Mesh aperture, wire diameter, roll width, selvage, and coating can be selected for site coverage and installation speed.

Request a Quote

Chain Link Slope Protection Net product image showing structure and appearance

Product Advantages

Slope covering: Designed around slope covering to match key engineering needs more directly.
Adaptable to complex terrain: Can be configured according to slope shape, geological conditions, and protection level.
Strong system compatibility: Can work with anchors, support ropes, and connectors to form a complete protection system.
Custom specifications: Size, material, surface treatment, and accessories can be adjusted by drawings or project requirements.
Easy maintenance: Clear structure supports later inspection, local replacement, and routine maintenance.

Structure

Chain Link Slope Protection Net is woven into a diamond mesh and used with anchors, support ropes, stitching ropes, and border ropes. Laid over the slope as a continuous covering layer, it restrains shallow debris, supports greening material, and reduces surface erosion.

Working Principle

Chain Link Slope Protection Net forms a continuous flexible covering over the slope. The diamond mesh limits shallow debris movement and supports sprayed soil, vegetation roots, or additional protection layers. With anchors and border ropes, it improves surface stability.

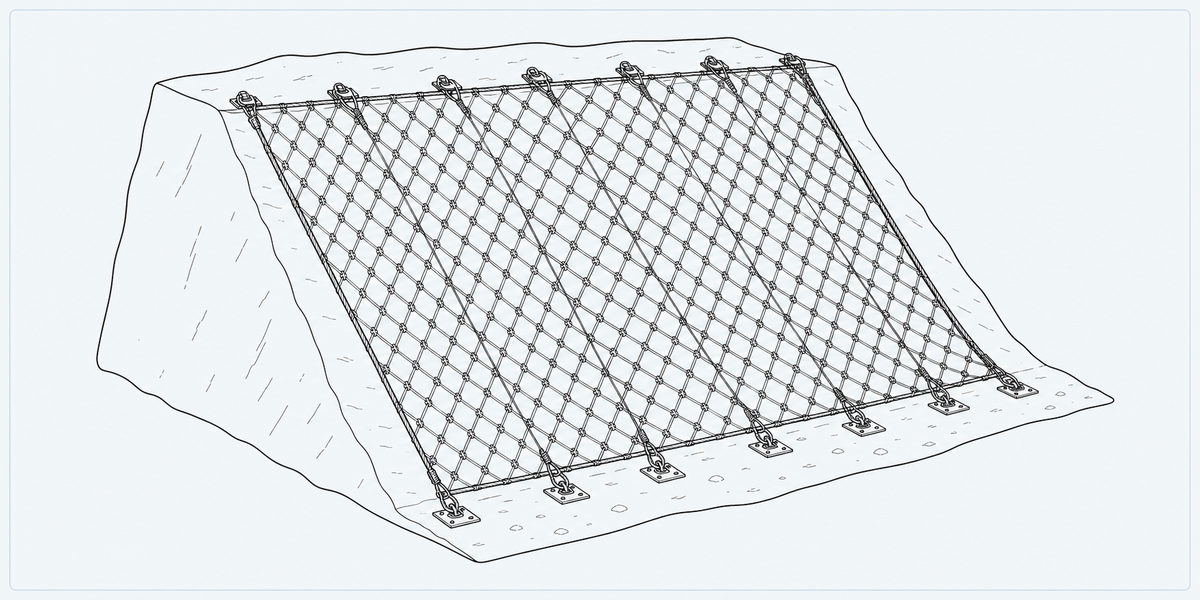

Chain Link Slope Protection Net structure detail image showing key components and connections

Specifications

Table 1: Chain Link Slope Protection Net Specifications
Mesh opening	40×40mm, 50×50mm, 60×60mm, etc.
Wire diameter	2.0-4.0mm, customizable
Roll width	1m, 2m, 3m, etc.
Surface treatment	Galvanized, PVC coated, powder coated
Accessories	Anchors, wire ropes, lacing wire, connectors

Applications

Slope Covering

Covers soil or weathered rock slopes to limit loose stones and surface movement.

Green Slope Works

Works with hydroseeding, topsoil, and vegetation recovery for ecological protection.

Roadside Ditches

Light protection for highway, railway, and drainage ditch slopes.

Temporary Stabilization

Used on exposed construction slopes, spoil areas, and short-term protection works.
