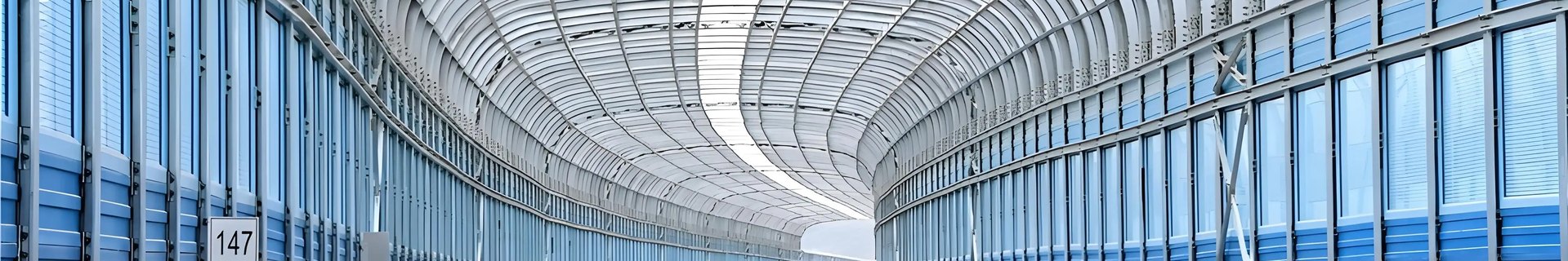

Fully Enclosed Sound Barrier product photo showing the product structure
Fully Enclosed Sound Barrier
HomeProductsSound BarrierFully Enclosed Sound Barrier

Fully Enclosed Sound Barrier for High-Noise Roads, Railways, and Urban Sensitive Areas

Fully enclosed sound barriers form a continuous cover around high-noise transport corridors to control noise more completely than side panels alone. The enclosure layout helps protect nearby residential, school, hospital, and commercial areas.

They are used on urban expressways, rail transit, viaducts, bridges, and sections where noise control targets are strict. Panel type, enclosure span, support structure, ventilation, lighting, drainage, and maintenance access are considered during design.

Request a Quote
Fully Enclosed Sound Barrier product image showing structure and appearance
Product Advantages
  • Fully enclosed noise control: Designed around fully enclosed noise control to match key engineering needs more directly.
  • Targeted noise reduction: Height and panel type can be designed according to the noise source, sensitive point, and site structure.
  • Landscape coordination: Color, panel type, and transparent sections can be customized for the surrounding environment.
  • Custom specifications: Size, material, surface treatment, and accessories can be adjusted by drawings or project requirements.
  • Easy maintenance: Clear structure supports later inspection, local replacement, and routine maintenance.
Structure

Fully Enclosed Sound Barrier consists of steel supports, side acoustic panels, roof enclosure components, connectors, and foundation systems, forming a covered noise-control corridor. The panels and roof work together to block noise transmission along high-noise roads, railways, and sensitive areas.

Working Principle

Fully Enclosed Sound Barrier cuts noise transmission paths with side walls and a roof enclosure. Absorptive panels reduce reflected sound, barrier panels block direct sound, and the roof limits diffraction. The steel frame transfers wind load and self-weight to the foundation for stable long-span performance.

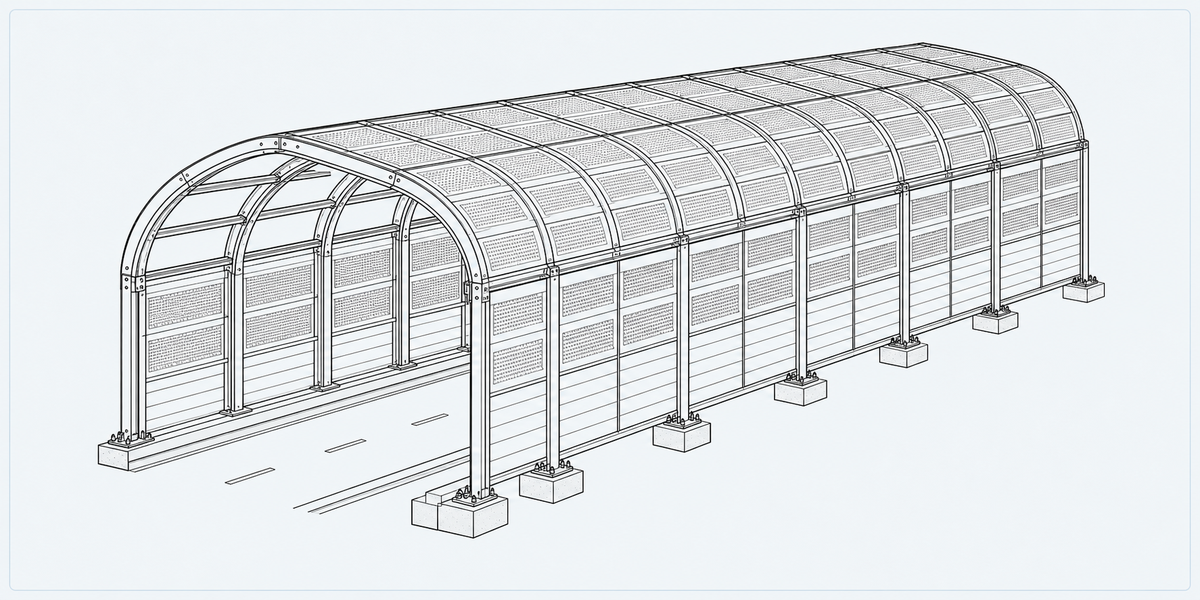

Fully Enclosed Sound Barrier structure detail image showing key components and connections
Specifications
Table 1: Fully Enclosed Sound Barrier Specifications
Structure form Arch, box, semi-enclosed, or customized structure
Panel material Metal acoustic panel, transparent panel, composite panel, etc.
Post material H-beam, steel tube, or customized steel structure
Surface treatment Hot-dip galvanized, powder coated, fluorocarbon coating, etc.
Supporting design Drainage, lighting, maintenance access, ventilation design
Applications
Highways

Creates continuous enclosed noise reduction along high-traffic road sections.

Railways and Bridges

Strong noise control for railways, urban transit, and elevated bridges.

Sensitive Areas

Protects schools, hospitals, and residential zones from traffic noise.

Industrial Noise

Isolates noise around factory boundaries, equipment zones, and production areas.
