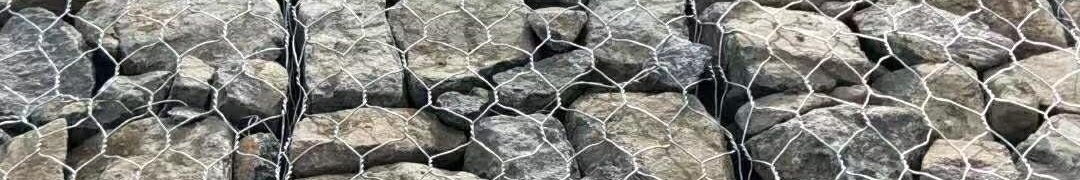

Gabion Basket product photo showing the product structure
Gabion Basket
HomeProductsWoven Gabion MeshGabion Basket

Gabion Basket for Modular Retaining Walls, Bank Protection, and Landscape Works

Gabion baskets are prefabricated box units assembled from woven mesh and filled with local stone to build gravity walls, bank revetments, and landscape edges. The compartmented design keeps the fill in place while allowing drainage through the structure.

They suit stepped slopes, erosion repair, culverts, reservoirs, and medium height retaining works where modular installation and on-site adjustment are useful. Basket size, diaphragm layout, wire coating, and lacing accessories can be matched to the project.

Request a Quote
Gabion Basket product image showing structure and appearance
Product Advantages
  • Box assembly: Designed around box assembly to match key engineering needs more directly.
  • Ecological permeability: Stone-filled or open mesh structure supports drainage, pressure release, and ecological recovery.
  • Flexible installation: Can be assembled and connected on site according to terrain, bank line, or design requirements.
  • Custom specifications: Size, material, surface treatment, and accessories can be adjusted by drawings or project requirements.
  • Easy maintenance: Clear structure supports later inspection, local replacement, and routine maintenance.
Structure

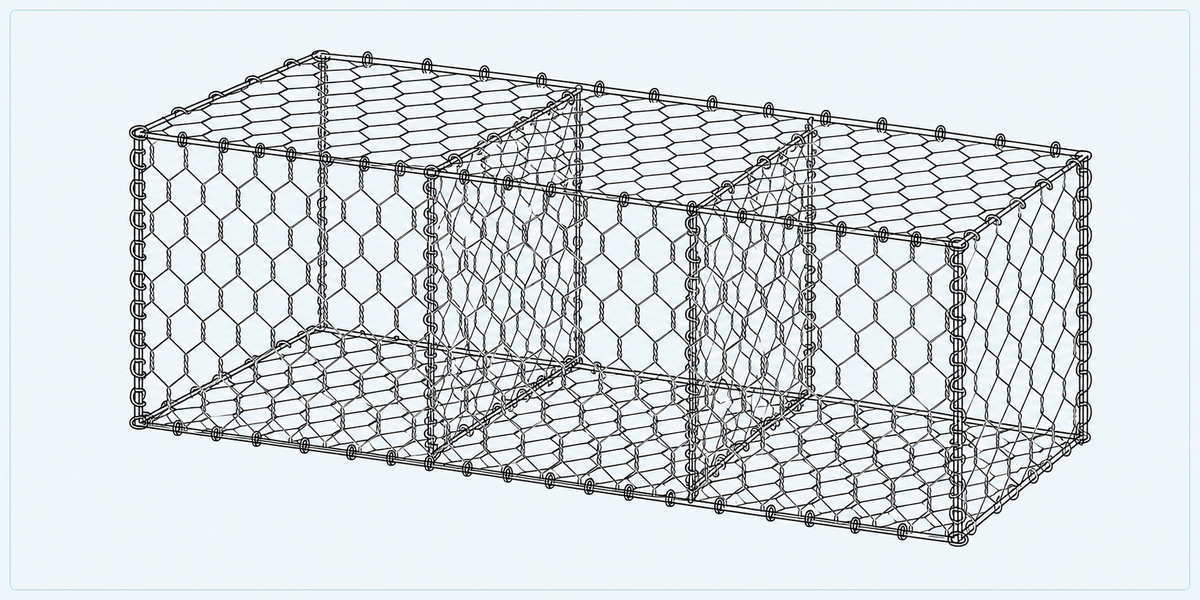

Gabion Basket is formed from folded hexagonal woven mesh panels, including base, side, end panels, diaphragms, and lacing accessories. After assembly and stone filling, the basket becomes a stable box structure for permeable retaining, bank protection, and drainage relief.

Working Principle

Gabion Basket works as a gravity protection structure through the weight of the stone-filled boxes and the connection between adjacent units. The stone fill resists sliding and overturning, the voids release water pressure, and laced units act together to create a stable continuous face for retaining walls, bank protection, and landscape works.

Gabion Basket structure detail image showing key components and connections
Specifications
Table 1: Gabion Basket Specifications
Common mesh opening 60×80mm, 80×100mm, 100×120mm, customizable
Common wire diameter 2.0-4.0mm, selected by project requirements
Surface treatment Hot-dip galvanized, Galfan, PE/PVC coated
Product size Length, width, and height can be customized by drawings
Connection method Lacing wire, spiral wire, or special fasteners
Applications
Ecological Revetment

Protects rivers, lakes, and wetland edges with permeable and vegetation-friendly structure.

Retaining Support

Fits medium and low retaining walls, stepped slopes, and landscape earth-retaining works.

Bank Restoration

Restores eroded banks quickly with stone filling and flexible surface stabilization.

Hydraulic Projects

Used in channels, drainage ditches, and reservoirs with adjustable on-site dimensions.
