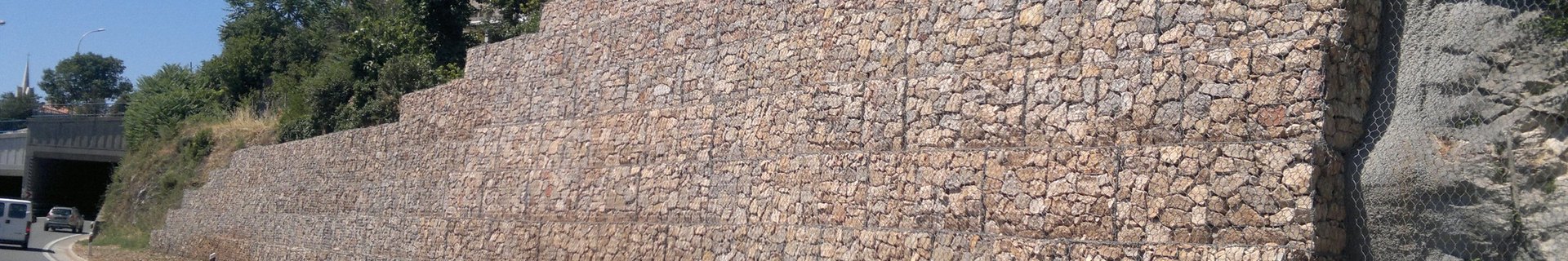

Reinforced Gabion product photo showing the product structure
Reinforced Gabion
HomeProductsWoven Gabion MeshReinforced Gabion

Reinforced Gabion for Steep Slopes, Retaining Walls, and Soil Reinforcement

Reinforced gabions combine a stone-filled facing with extended mesh reinforcement to stabilize soil behind the structure. The system helps form flexible retaining walls on steep slopes while maintaining drainage and vegetation potential.

It is suitable for road cuts, embankment widening, bridge approaches, and sites where retaining and soil reinforcement must work together. Reinforcement length, mesh strength, facing size, and coating are coordinated with engineering calculations.

Request a Quote
Reinforced Gabion product image showing structure and appearance
Product Advantages
  • Reinforced wall: Designed around reinforced wall to match key engineering needs more directly.
  • Ecological permeability: Stone-filled or open mesh structure supports drainage, pressure release, and ecological recovery.
  • Flexible installation: Can be assembled and connected on site according to terrain, bank line, or design requirements.
  • Custom specifications: Size, material, surface treatment, and accessories can be adjusted by drawings or project requirements.
  • Easy maintenance: Clear structure supports later inspection, local replacement, and routine maintenance.
Structure

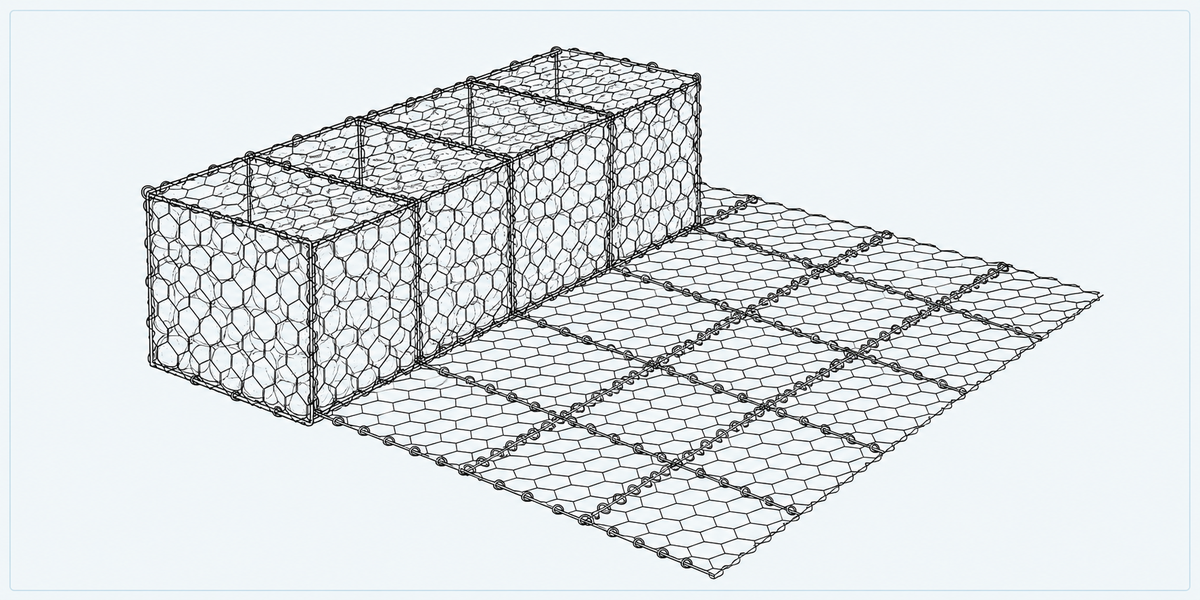

Reinforced Gabion combines a stone-filled gabion facing with an extended reinforcement mesh tail. The front box is formed with diaphragms, selvedge wires, and lacing, while the reinforcement panel is embedded in backfill to improve the stability of high slopes and retaining structures.

Working Principle

Reinforced Gabion works by combining a protective, permeable gabion facing with rear reinforcement mesh embedded in the backfill. Friction and interlock between the mesh and soil distribute lateral earth pressure over a larger area, improving the stability of high fills, slopes, and retaining structures.

Reinforced Gabion structure detail image showing key components and connections
Specifications
Table 1: Reinforced Gabion Specifications
Facing size Customized according to project design
Reinforcement length Determined by wall height and soil conditions
Mesh opening 60×80mm, 80×100mm, etc.
Surface treatment Hot-dip galvanized, Galfan, PE/PVC coated
Accessories Lacing wire, connectors, geosynthetics, etc.
Applications
Reinforced Walls

Used for higher retaining structures where mesh reinforcement and fill work together.

Road Embankments

Controls lateral deformation on highway, railway, and site embankment slopes.

Steep Slope Works

Creates steeper protected slopes in limited spaces while maintaining drainage.

Landscape Terraces

Balances load capacity and ecological appearance for parks, banks, and hillside projects.
