Passive Slope Protection Net

Home Products Slope Protection SystemPassive Slope Protection Net

Passive Slope Protection Net for Rockfall Interception Along Roads and Facilities

Passive slope protection net is installed away from the rock face to intercept falling stones and dissipate impact energy before debris reaches roads, buildings, or equipment. It is a catchment system rather than a surface reinforcement layer.

It is applied at slope toes, road shoulders, railway lines, hydropower sites, and mountain facilities. Post height, ring or rope net type, energy level, brake elements, and foundation layout are matched to the falling rock risk.

Request a Quote

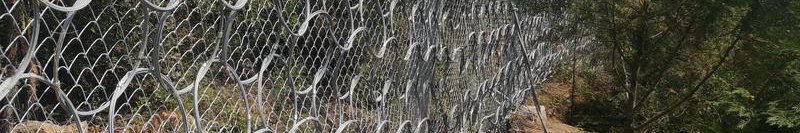

Passive Slope Protection Net product image showing structure and appearance

Product Advantages

Rockfall interception: Designed around rockfall interception to match key engineering needs more directly.
Adaptable to complex terrain: Can be configured according to slope shape, geological conditions, and protection level.
Strong system compatibility: Can work with anchors, support ropes, and connectors to form a complete protection system.
Custom specifications: Size, material, surface treatment, and accessories can be adjusted by drawings or project requirements.
Easy maintenance: Clear structure supports later inspection, local replacement, and routine maintenance.

Structure

Passive Slope Protection Net includes steel posts, base anchors, support ropes, interception nets, brake rings, or energy dissipaters. Installed at the slope toe or above protected areas, the system absorbs rockfall impact through deformation and energy dissipation while intercepting falling blocks.

Working Principle

Passive Slope Protection Net intercepts falling rocks along their movement path. When impact occurs, posts, support ropes, nets, and energy dissipaters deform in sequence and absorb energy, transferring forces to foundations and anchors so the rocks are retained within the protection zone.

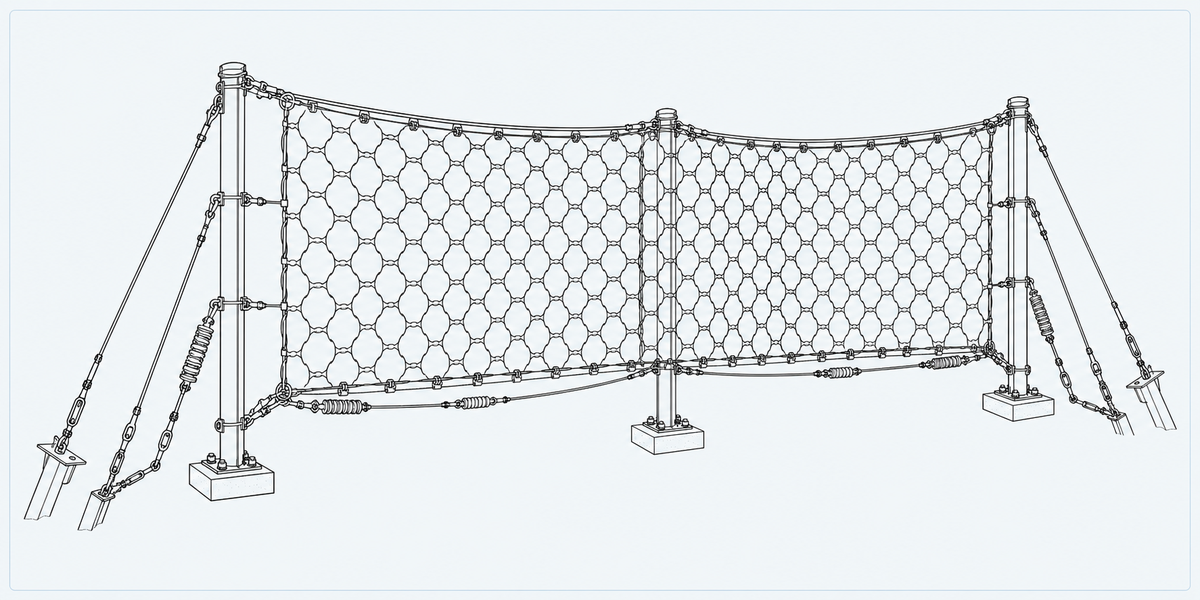

Passive Slope Protection Net structure detail image showing key components and connections

Specifications

Table 1: Passive Slope Protection Net Specifications
System components	Steel posts, support ropes, ring/wire rope mesh, energy dissipators, anchors
Protection height	Designed by project protection range
Protection energy level	Selected by rockfall risk assessment
Surface treatment	Hot-dip galvanized or zinc-aluminum anti-corrosion finish
Foundation type	Anchor foundation, concrete foundation, or combined foundation

Applications

Rockfall Interception

Installed below slopes to catch falling and rolling blocks.

Roads and Railways

Protects mountain roads, railways, bridges, and tunnel approaches.

Scenic and Mining Areas

Fits trails, mine slopes, and construction access roads needing passive protection.

Gully Protection

Provides energy absorption at gullies, spoil areas, and rockfall paths.
