Steel Rope Clasp

Home Products Slope Protection SystemSteel Rope Clasp

Steel Rope Clasp for Wire Rope Fixing, Tensioning, and Slope Protection Connections

Steel rope clasps are connection accessories used to fasten, loop, or adjust wire ropes in slope protection and barrier systems. Reliable clamps help keep rope tension and node positions stable after installation.

They are selected according to rope diameter, load requirement, installation direction, and corrosion exposure. Correct matching of clasp size, quantity, and tightening method is important for active nets, passive barriers, and ring net systems.

Request a Quote

Steel Rope Clasp product image showing structure and appearance

Product Advantages

Connection accessory: Designed around connection accessory to match key engineering needs more directly.
Reliable connection: Used for wire rope fixing and node locking to improve connection stability.
Size matching: Available in different sizes according to wire rope diameter and installation position.
Custom specifications: Size, material, surface treatment, and accessories can be adjusted by drawings or project requirements.
Easy maintenance: Clear structure supports later inspection, local replacement, and routine maintenance.

Structure

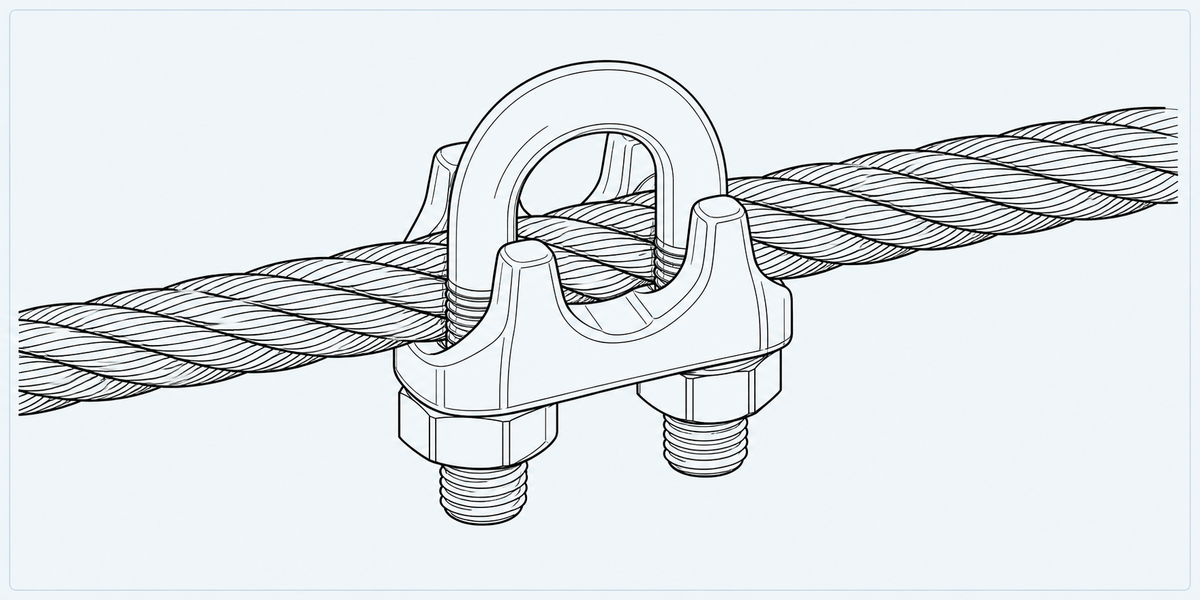

Steel Rope Clasp usually consists of a U-bolt, saddle, and nuts, or a plate-type special clamp. It grips rope ends or crossing nodes to fix, tighten, and connect steel rope components in slope protection systems.

Working Principle

Steel Rope Clasp clamps the steel rope with a U-bolt and saddle, creating friction that prevents rope ends or nodes from slipping. Proper quantity and orientation ensure reliable rope connections and stable load transfer in support ropes, stitching ropes, and tied nodes.

Steel Rope Clasp structure detail image showing key components and connections

Specifications

Table 1: Steel Rope Clasp Specifications
Matched rope diameter	Selected according to wire rope diameter
Material	Carbon steel, stainless steel, or customized material
Surface treatment	Electro-galvanized, hot-dip galvanized, stainless steel finish
Components	U-bolt, saddle, nuts
Use	Wire rope end fixing, connection, reinforcement

Applications

Steel Rope Connection

Fixes rope ends, corner connections, and load-bearing nodes securely.

Mesh Splicing

Connects slope meshes, ring nets, and support ropes during installation.

Anchor Nodes

Works with anchors, posts, and cable systems for reliable load transfer.

Maintenance Replacement

Supports inspection, partial replacement, and quick repair of damaged points.
